Low voltage switchgear series

JXF CONTROLLER

OVERVIEW
The JXF control! box is suitable for three-phase three wire, three-phase four wire, and three-phase five wire systems with 50Hz, 500V and below, and aload curent of no more than 250A.It provides control, leakage protection, overload, short circuit, and phase loss protection for the distribution systemas well as various controls for the moto.This box is reasonably designed, smallin size, aesthetically pleasing in appearance, safe and reiable in use, andwidely used in metalluray, petrochemicals, healthcare, aviation,residential communities, shopping mals, schools, and urban renovations.

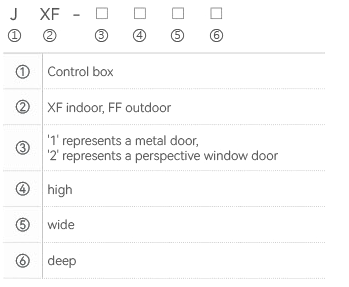

MODEL AND MEANING


CONDITIONS OF USE

◇ Altitude: not exceeding 2000m;

◇ Environmental temperature: no more than+40 'C and no less than -25 *C ;

◇ Relative humidity:+20 'c , the monthly average relative humidity of the spatiotemporal atmosphere is not more than 40%,

◇ Places without severe vibration and impact;

◇ There is no exolosive hazardous area. and there is no gas or conductive dust in the medium that can corrode metals and damage insulation
Note: When ordering this product beyond the above conditions, please consult with our company.

STRUCTURAL CHARACTERISTICS
◇ Multiple series, multiple structures, welded, split, and assembled; Outdoor and indoor types;
◇Multiple double-layer door structures ensure safe and reliable use;
◇ Multiple protection levels: IP20, 1P40, 1P43, 1P54, lP65, it can meet the needs of different places.

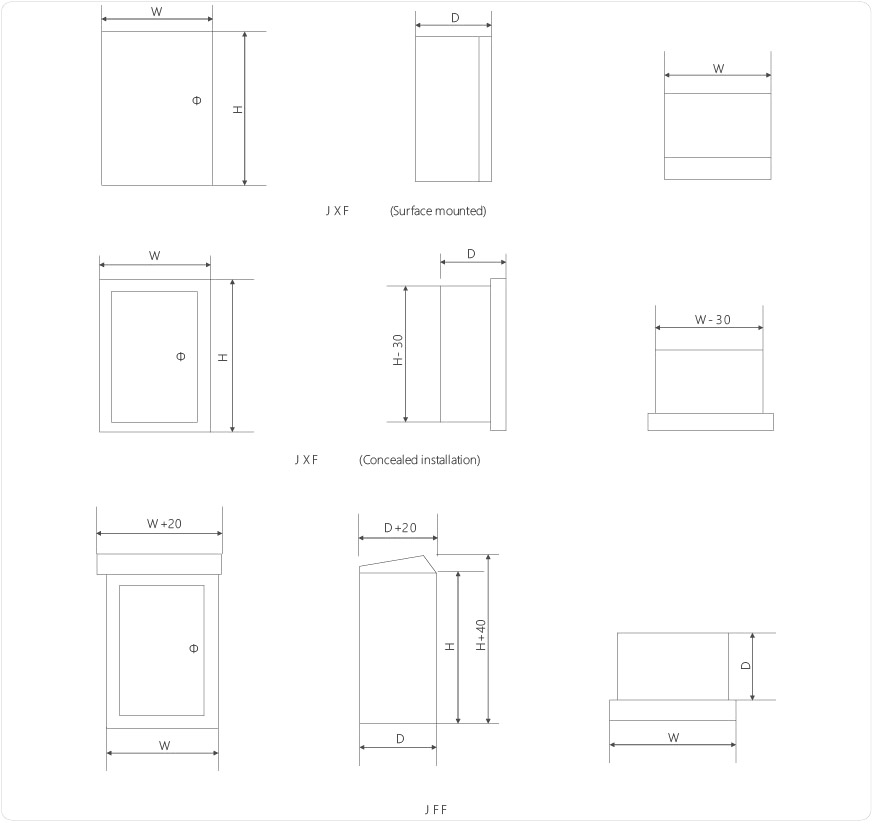

INSTALLATION DIAGRAM
aaaa

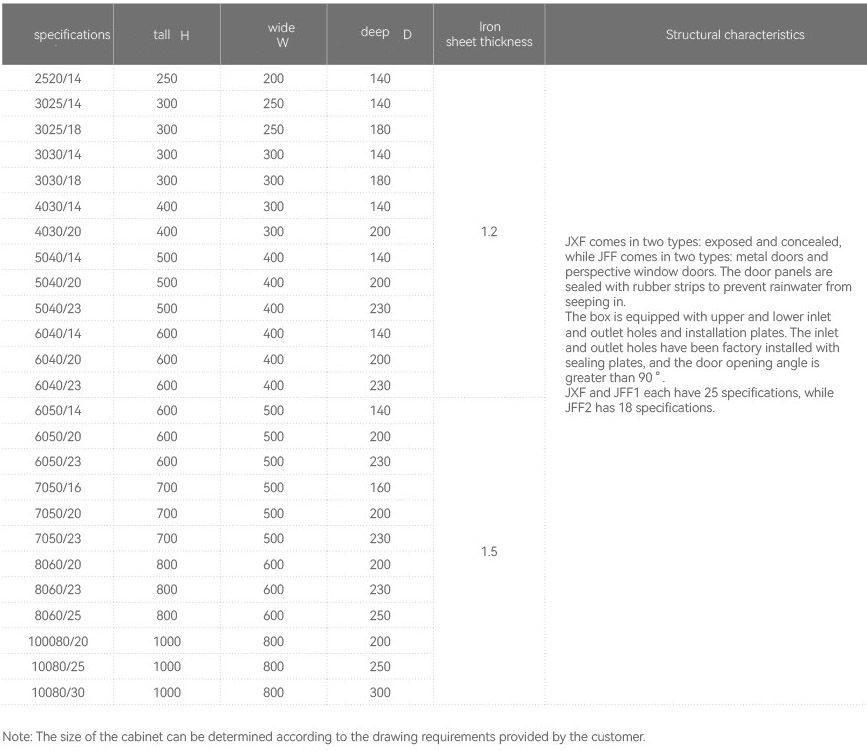

External dimensions (welded)

aaaa

ORDERING REOUIREMENTS

When ordering, please indicate:

◇ Model;

◇ Installation method;

◇ Structural type and external dimensions;

◇ System diagram and control schematic diagram;

◇ Special requirements shall be resolved through negotiation with the manufacturer.
