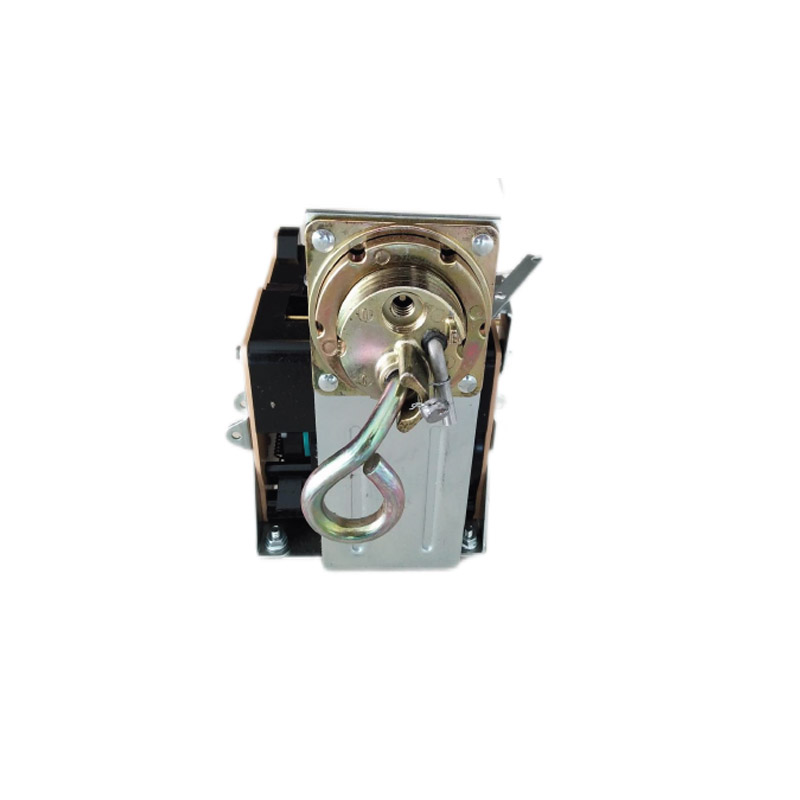

Secondary LV Oil Breaker(CSP)

Views: 0
Date: 2024-05-20 16:54:34
Category: IEEE Accessories

The breaker is the self-protection device that is installed on the secondary side of the transformer to protect the transformer for distribution line from the long time overload (for abnormal insulating oil temperature rise) or short faulted current on load side by automatic trip.
The breaker can be used in single phase transformer and three phase transformer,used in pad-mounted or pole-mounted transformer. The breaker has an optional overload alarm indicator light, also has the Emergency Overload function.

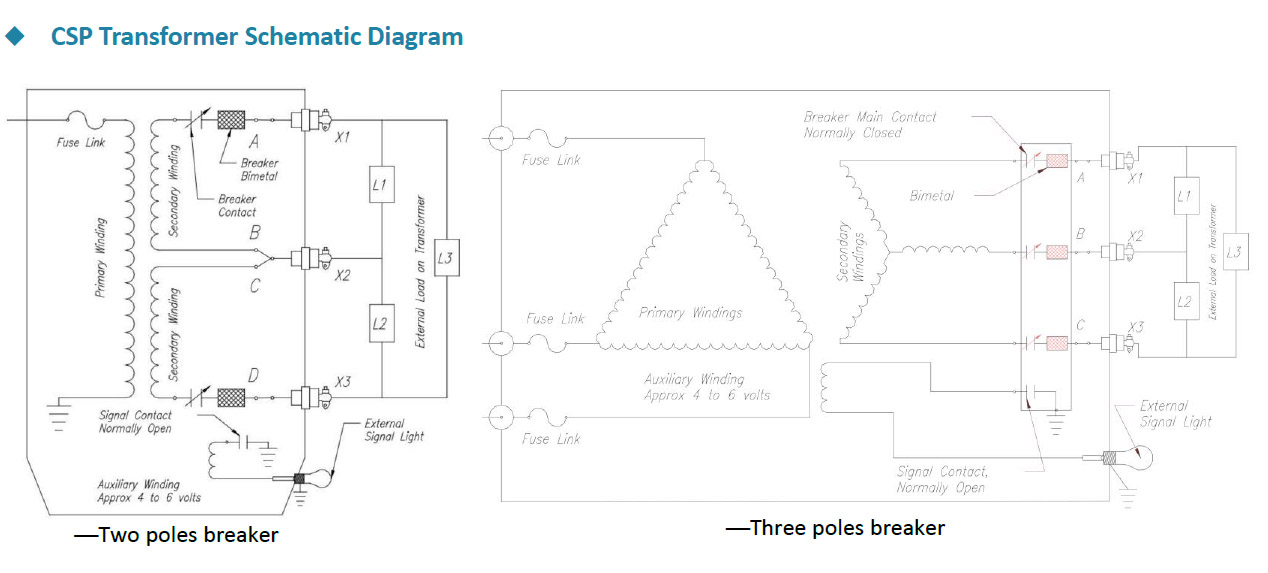

Usually, this breaker is used with HV weak link together to get the full range over-current protection for the transformer.

aaaa

aaaa

aaaa

To order two poles breaker for your single phase transformer or three poles breaker for your three phase transformer, please give us your transformer parameters: Single or three phase, HV/LV voltage Values, kVA Value, Delta or Wye, Short circuit impedance (%). Also give us the trip oil temperature your required(The default temperature value is110℃). Then we can help you select the proper breaker models.
