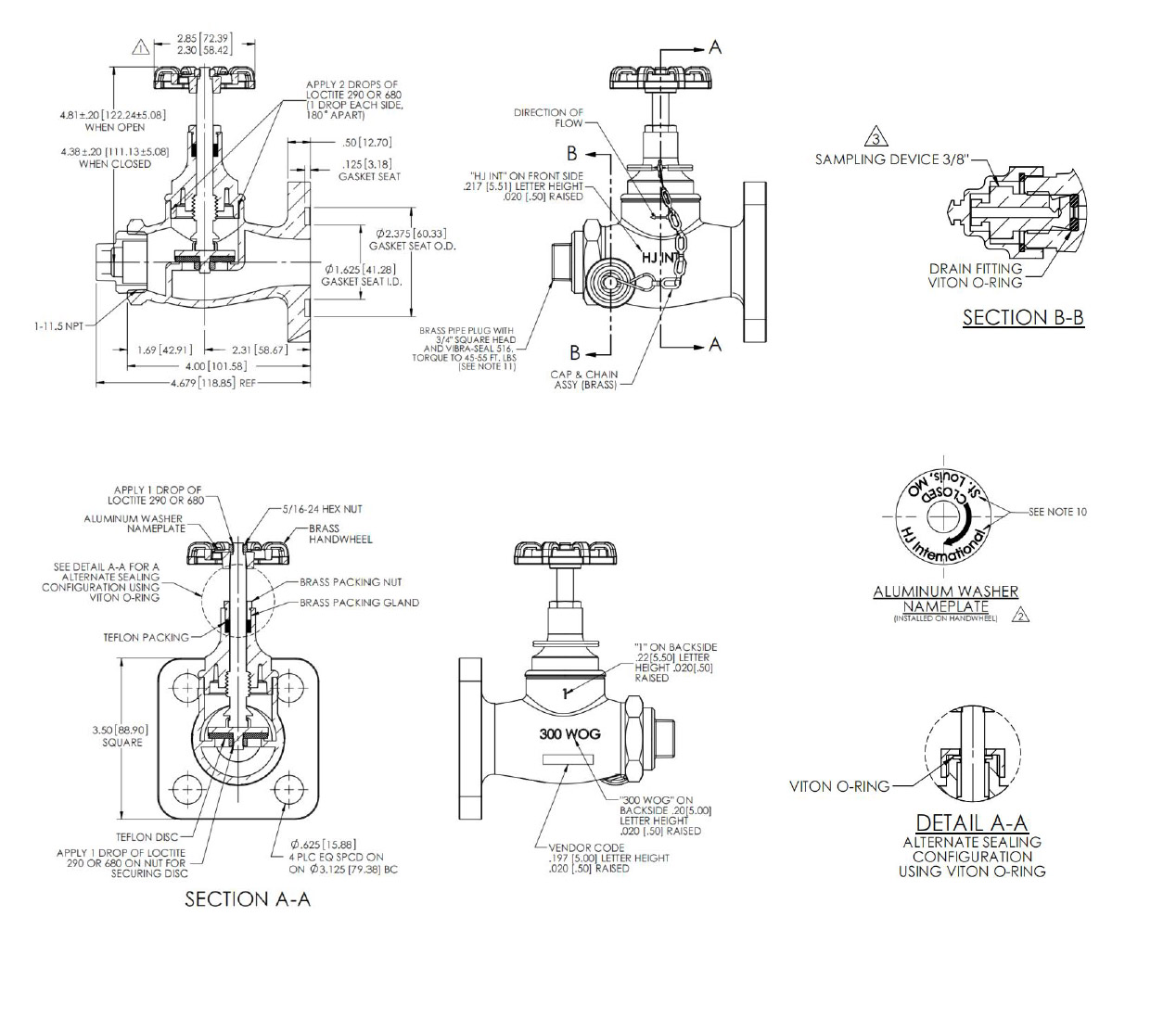

1" Straight Flange Globe Valve With Side Sampler

• Views: 0
• Date: 2024-05-20 15:27:02
• Category: IEEE Accessories

Contact Us

Note

1. ELECTRICAL APPARATUS VALVE.

2. RATING: 300 LBS. WOG (WATER-OIL-GAS)

3. VALVE BODY: C 377 or HPb58-3

4. TEFLON DISC

5. GASKETS: VITON

6. SAMPLER IS ON OUTLET SIDE OF VALVE.

7. MUST BE SUPPLIED IN THE CLOSED POSITION.

8. PACKAGING REQUIREMENTS:

- 12 VALVES PER BOX

- PACKAGING MUST SPECIFY QUANTITY, PART NUMBER ,"MADE IN CHINA",

AND "HJ INTERNATIONAL" ON BOX.

9. SAMPLER CAP MUST BE REMOVED BEFORE TESTING THE VALVE.10. ALUMINUM WASHER NAMEPLATE SPECIFICATIONS:

- THE WASHER WILL BE GREEN COLOR: PANTONE 149C OR

EQUIVALENT.

- "HJ INTERNATIONAL", "ST. LOUIS, MO", & "CLOSED" .098 [2.50] MIN.

TEXT HEIGHT.

- "CLOSED" ARROW TO POINT IN THE CLOCKWISE DIRECTION.

11. REFER TO DV1000-002-ILL FOR VIBRA-SEAL APPLICATION AND

DIRECTION OF FLOW.

12. INITIAL TORQUE ON PACKING NUT TO BE APPROXIMATELY 5 IN-LBS.

SUBSEQUENT TIGHTENING FOR ANY SEEPAGE TO BE IN 5 IN-LBS

INCREMENTS..

13. BRASS PLUG IS NOT ASSEMBLED
