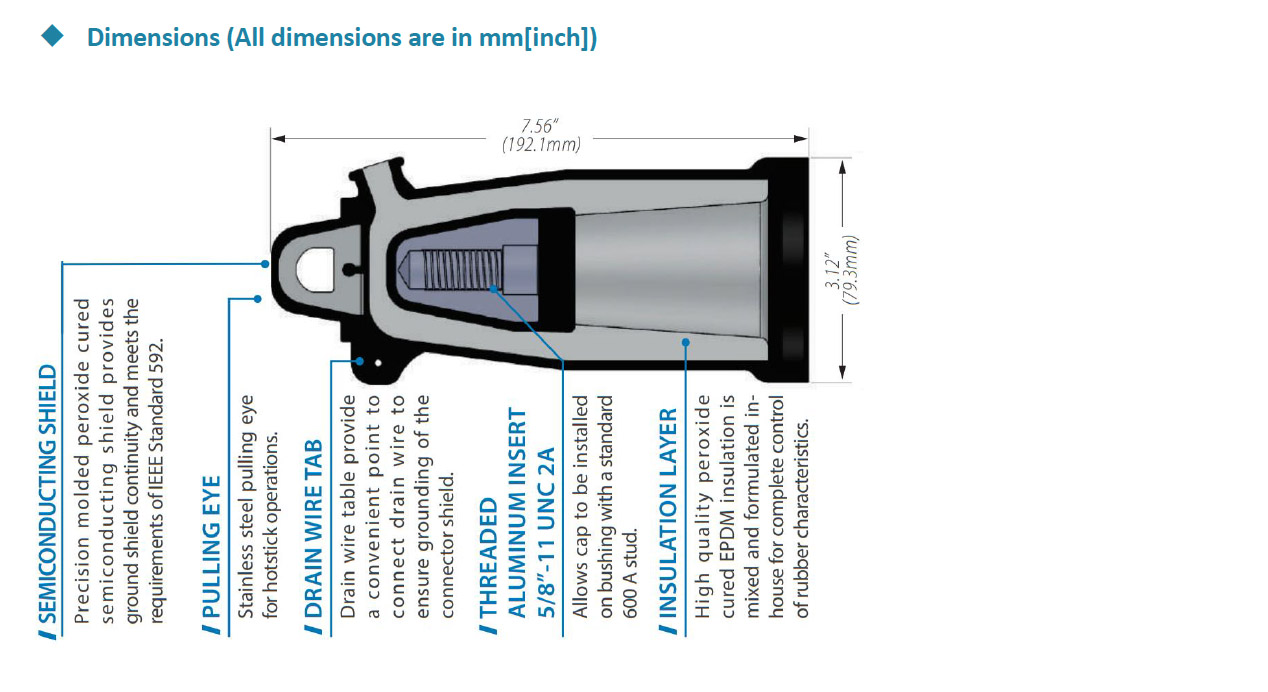

This 600A 15/25kV insulated protective cap meets all requirements of IEEE standard 386 – 2009. It provides insulated, fully shielded submersible protection for 15 and 25kV class deadbreak interfaces The 600A 15/25kV insulated protective cap design incorporates peroxide cured, EPDM insulation rubber, and a semi-conducting insert and outer shield. The outer conductive shield maintains ground potential on the cap's surface
when a grounding wire is connected to a common ground.
