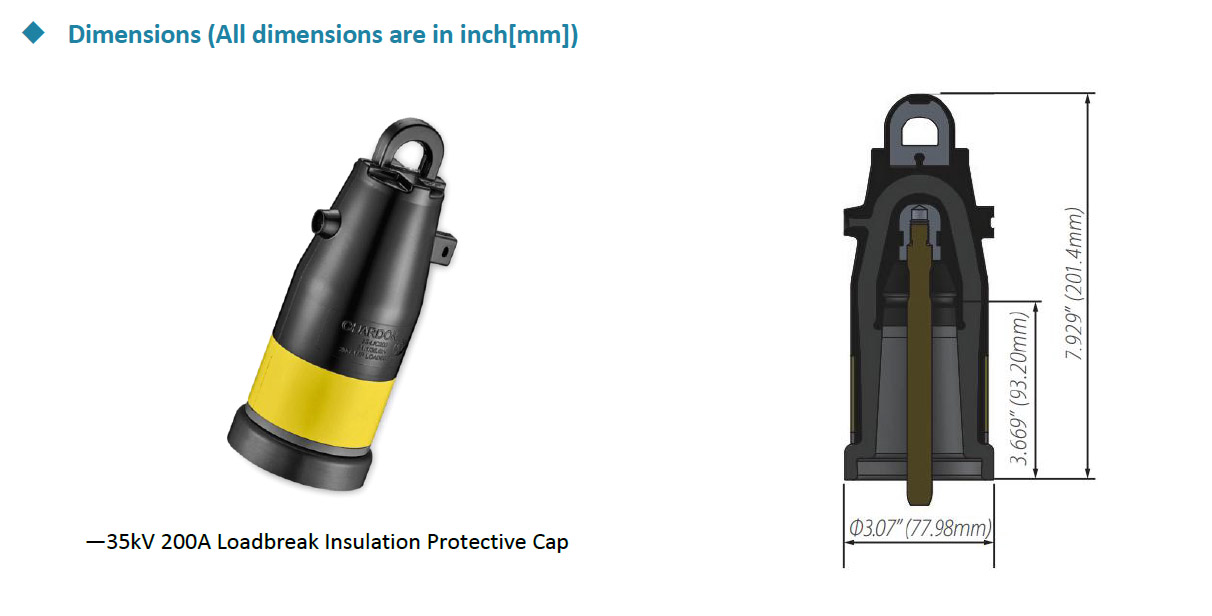

This Insulation Protective Cap is an accessory product to other 35kV 200A products with loadbreak interfaces (bushing inserts, loadbreak junctions, feed thru inserts, etc.). It is designed to physically seal and electrically insulate loadbreak bushing interfaces. When installed on a loadbreak bushing interface, and properly grounded using the attached drain wire, the Loadbreak Insulation Protective Cap provides a submersible, fully shielded insulated cap for energized bushings.
The Loadbreak Insulation Protective Cap can be used for temporary or permanent applications.
It is small interface, meet figure 7B in IEEE Std 386-2016.
