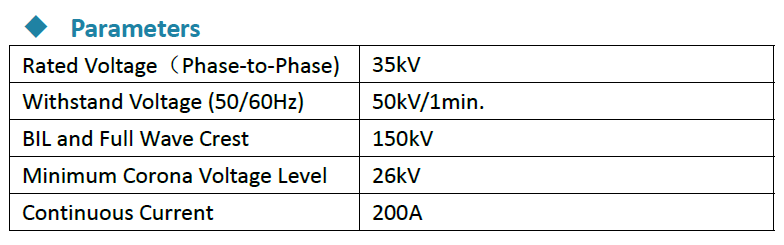

The loadbreak elbow is a fully shielded and insulated termination connecting underground cable to transformers, switchgear, and other apparatus equipped with loadbreak bushings, junctions,or other loadbreak connectors. It meets all the requirements of IEEE Standard 386（Large interface, meet figure 8 in IEEE Std 386-2016）).

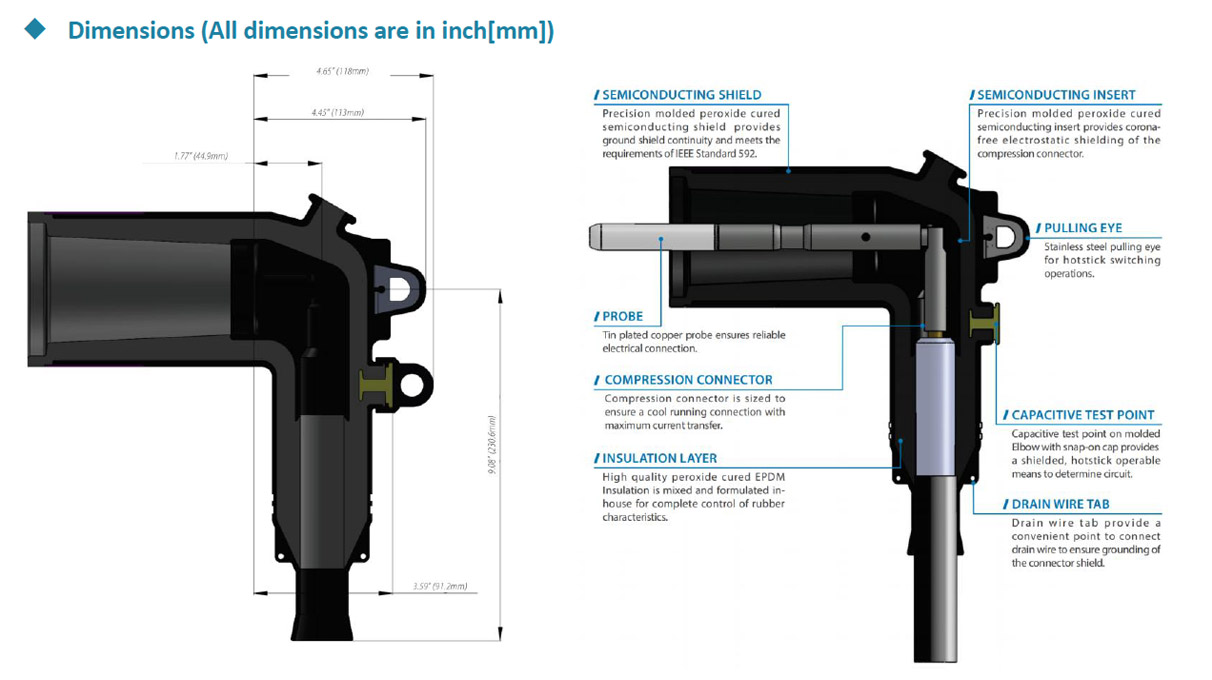

The loadbreak elbow is molded using high quality peroxide –cured insulating and semi-conducting EPDM rubber,it include a stainless steel pulling eye. An optional capacitive test point is available. Included with the elbow kit is a bi-metal or copper compression connector, and a tin plated copper probe with an arc quenching tip.
