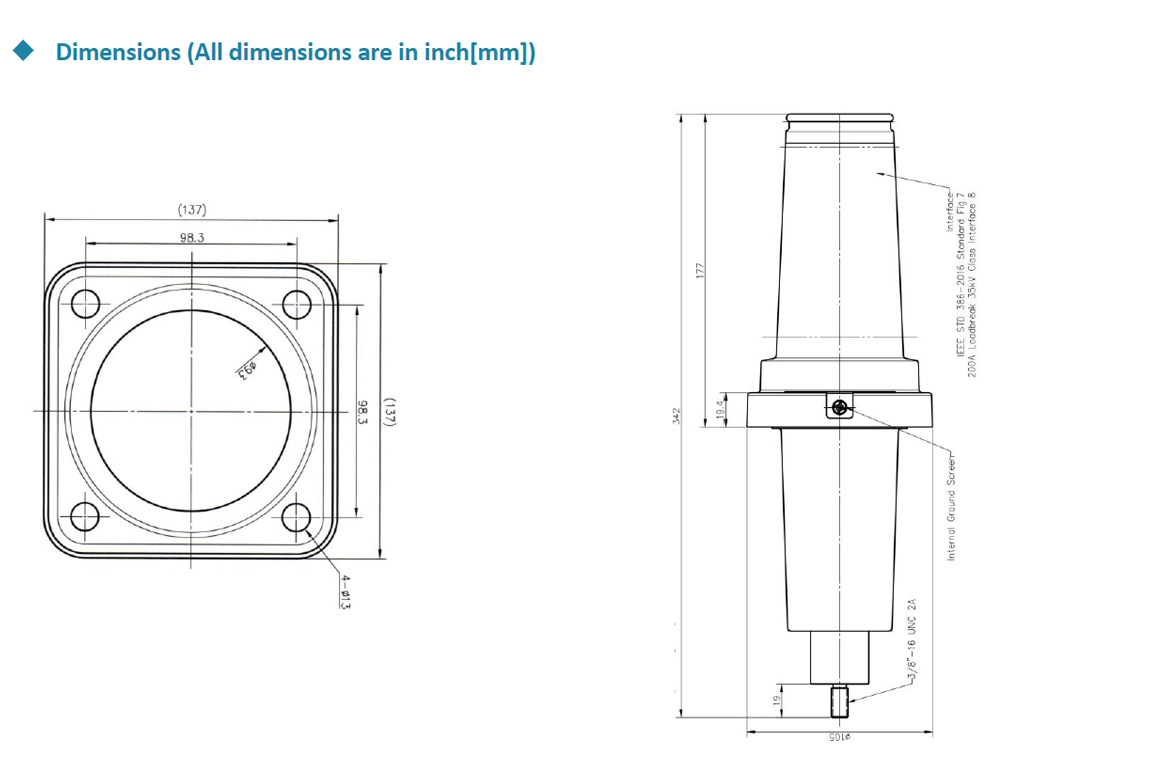

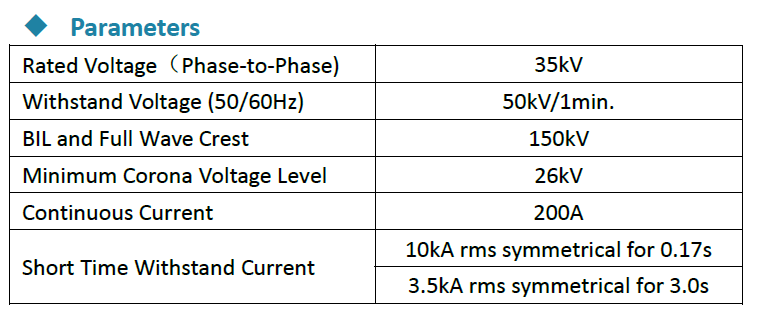

35kV 200A Three-phase Integral (One-piece) Loadbreak Bushing
![35kV 200A Three-phase Integral (One-piece) Loadbreak Bushing](/uploadfile/202405/4c7fc1babc22208.jpg)
Tags:
The 35kV 200A Three-phase Integral (One-piece) Loadbreak Bushing meets all the requirements of IEEE Std 386™ standard(Large interface, meet figure 8 in IEEE Std 386-2016), Separable Insulated Connector Systems, and combines the advantages of areliable one-piece design with the operating features required for underground distribution switching .
The bushing is designed for pad-mounted transformers, switchgear and other apparatus filled with transformer oil or an approved equivalent. It eliminates the insert-to-well interface present in bushing well and insert primary terminations.
The bushing has a continuous copper/copper alloy current path. When mated with comparably rated products, the bushing provides a fully shielded, submersible, separable connection for loadbreak operation.
