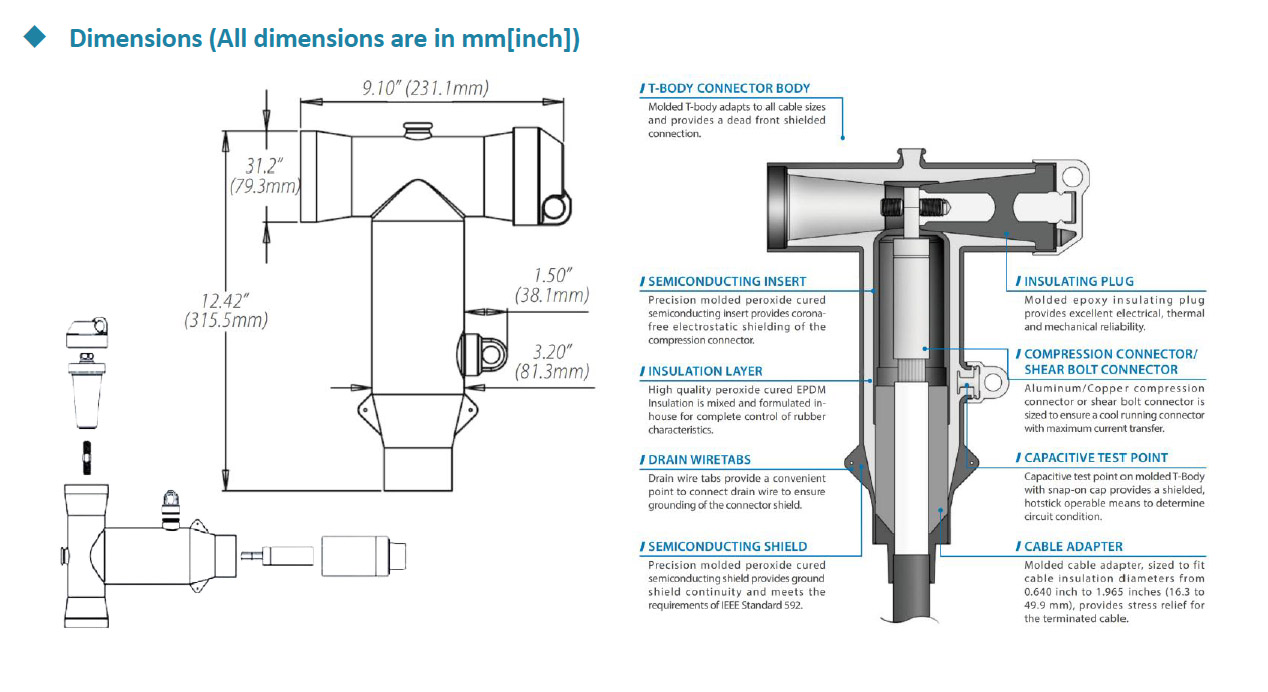

The T-body deadbreak connectors are designed to terminate underground cables to high-voltage apparatus such as transformers and switchgear. They are fully shielded fully submersible and meet the requirements of IEEE Standard 386.
The capacitive test point on the insulating plug provides a means of testing the circuit without disturbing the bolted connection. In addition to the capacitive test point feature on the insulating plug, we offers an optional capacitive test point on the T-Body connector.This allows the use of the fault indicators, and provides a hotstick operable means of determining circuit condition when used with high impedance voltage sensing devices designed for test points.
The T-Body Connectors are designed for use on solid dielectric cable (XLPE or EPR) with extruded semi- conductive shields and concentric neutral, with or without a jacket.
